Mikes Saturday Hybrid-Solar- Electric Workshop
|  | | | IMA battery pack disassembly |
Ian, better known as IamIan, has moved nearby, and is coming over to help with projects when he has a free Sat morning. We use that time to make some headway on the many Hybrid Solar and EV projects.
Check here to see if their will be a workshop if you want to come up and lend a hand.
Events Calender
|
IMA motor temp

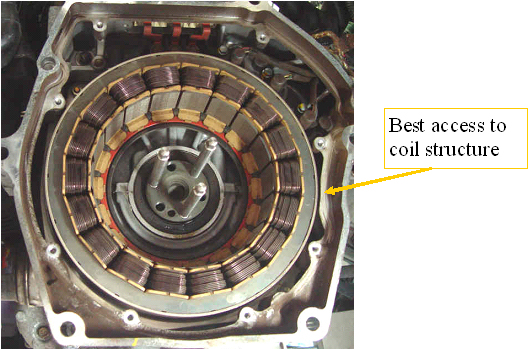

|  | | | IMA temp |
With MIMA a lot of assist can be sent to the IMA motor, but we have no way to know if it is getting too hot.
A thermal probe could be attached to the magnet structure by drilling a small hole in the side case right where the case is in the closest proximity to the coil structure. |
WORKSHOP 2008
|  | | | Some of the fun projects for this year |
Time to get some help on the many projects underway.
EV bucket truck battery mount wiring and test, new solar tracker drive system, inventory damage to green machine and begin repair/removal of engine and IMA, build 48V prius subpack with pressure switch for charge termination,Ev ATV, cycle old 6V batteries for use on EV bucket truck.Finish the test point breakout panels on the Insight on a stand, make Insight IMA electric motor stand alone with bearings and end plates. Thats just the start.
Have fun, and learn about how this stuff works, and help me with my green projects. |
IMA motor is added to my inventory
|  | | | IMA motor |
I finally have a complete IMA motor that is not in a working car that I can play with.
I will need to build a central output shaft with bearings, for the magnet assembly to get to the point where it is a usable motor. Unfortunately the guy wanted to keep the power electronics for use with another motor. If anyone has an Insight power electronics package sitting in their basement or garage, that they would like to see put to good use please contact me.
Once I turn this into a functioning motor, there are several uses that I have in mind:
1)Three phase motor demo for the hybrid training class.
2)We would need to make the demo do more than turn, so mounting it on an electric ATV or go cart may be fun.
3)driving a rear wheel on an Insight for a pure EV mode,possibly by electrically switching the IMA drive signals to the EV motor and back to swap modes?
4) explore using the motor as a generator.
Some specs not easily available.
The complete motor with rotor weighs about 43 lbs.
The 3 phase winding assembly weighs 21.9 lbs
The rotor 8.9
The aluminum casting with sensors 6
The steel commutator disk 6
The thick and heavy commutator disk is may also also play a part of the magnetic path, or shielding |
Cutting deeper
I cut the remaining inner webs from the battery case, and tried 20 prius subpacks. It fit nicely, and if mounted as shown, the existing battery fan should keep them cool.
|
Thoughts on my ideal Insight pack
|  | | | The ideal battery pack? |
Why a different battery pack?
First reason,the present packs are not holding up.
We can't change the control software that is not doing a good battery management job.We need a replacement pack that fits where the stock pack is, uses the same power/relay board and fuse, uses prius subpacks, with the battery management software built into the new pack (open source).This pack would interface with the present BCM, and simulate the battery signals, so the stock SOC guage would work normally to show the battery SOC, and the BCM always thinks the pack is perfect.Any error that our battery management system would detect can shout down the IMA by simulating an error to the stock BCM, which will respond by setting an IMA light and disabling the system.
With PIMA, the bigger the pack, the longer you can run in Electric Priority mode, and the longer you can get >100mpg.
What is the ultimate Insight pack for the minimum cost?
Of course a pack of the new A123 LiPo Hybrid batteries would be my first choice. But my finances dictate that unless they donate some to the cause, I will have to go with NIMH. I have almost enough Prius subpacks to make up four 144V strings of 20 prius batteries.
The 4 packs could replace the present battery pack, with three additional parallel booster packs, increasing the total pack AH to 26. The 80% to 20% SOC range would now have 16AH instead of 4AH. I estimate that this setup will extend the Boosted Battery PIMA range (> 100 mpg) to well over 60 miles, even at 65mph and hills.
With proper design,each of the 4 packs could also work individually as a plug in replacement for the stock Insight pack, or as part of a multy pack system.
Will probably need some custom rear springs to maintain proper ride height.
Then we build a BLDC 10hp 144V electric rear drive system and power it from the same battery pack.Allowing an electric only mode with possibly 40 mile range, but with the ability to recharge with gas while driving under full electric.
Lots of possibilities, the only missing ingredient is the money to get the components and a good mixed signal storage oscilloscope, so I can proceed efficiently. Too many projects not enough time or money . |
Prius subpacks in an Insight
|  | | | Hacking the spare Insight battery case |
Will Chabotte came up for the Jan 19 workshop, and we got into hacking the ribs out of the spare Insight battery case.
A sharp carpenters saw did a nice job cutting the plastic, but only after we put in a good deal of elbow grease.
If the side ribs are also removed, we can get 20 subpacks into the Insight case. It is a toss up as to whether this is the best route to go, as the sawing and modifications are time consuming,and we still have to deal with cooling the subpacks properly, and making all the connections, but in theory it can be made to work.
A custom case with the cooling and subpack clamping considered in the design will make a better functioning solution, but the case would need to be built from scratch.
It's never easy.
|
Other projects
|  | | | some of the projects we will be working on |
Other projects that are in the works, not necessarily in any order.
1. Insight on a stand:
Get ICE to run continuously.
Add output axles and wheel spindles so Motor generators can be attached.(full hybrid dyno functionality)
Add the transmission lift system powered by the EPS unit.
Test IMA system operation with dyno.
2.Develop Prius inverter driver to power the modified synergy MG set for potential EV use.
3.Develop Insight Battery test system that will look at individual subpack voltages on all 20 subpacks, four temp sensors, current in and out of pack, SOC and capacity test.
4. Develop replacement for the Insight battery that has higher capacity cells, and lithium chemistry.
5. Mounting of EV modified Prius synergy drive in a stripped down Insight, with full conversion to EV as the final goal.
6. V-boost integration into Insight system, and control tie in with MIMA.
7. Development of MIMA based MPG maximizing cruise control that will control throttle as well as IMA.
8. MIMA LCD display, and steering wheel mounted Joystick
9.High speed E-wheel
10. Bolt on E-wheel drive system for one of the existing Insight rear wheels.
11. convert telephone truck to full electric.
12. build data acquisition system for Insight battery pack.
13. Determine best way to add solar pack charger.
14. Put bearings and output shaft on the Insight IMA motor.
15. Determine best adhesion system for direct solar cell application to the roof and hood.
|
Early results of subpack testing
|  | | | Ian's test setup |
Ian has ran each subpack through at least one cycle of charge/discharge to determine AH, effect of cycling, and potential cell imbalances.
Here is the firs look at the data.
#1> Determine the Capacity of the sub-packs
#2> Determine effect of cycling sub-packs
#3> Compare cell resistances in sub-packs
Cell resistance variation can be seen in the difference in temperatures.
Must make sure to take into account the how batteries charge as a sub-pack.
Each cells resistance is in series
Cells in series all have the same current but not the same voltage.
The heat / resistance can also be cause by cells that are lower capacity reaching full capacity sooner.
Once a NiMH battery reaches its SOC Capacity any further charging will see a temperature increase.
This is a variable resistance based on battery SOC.
Faster / higher current charges and discharges will more show the resistance of the battery / sub-packs
Slower / lower current charges and discharges will more show the true capacity of the battery and more fully cycle it.
4 subpacks started with 0000 mAh of initial SOC
6 subpacks started with over 2,000 mAh of initial SOC
9 subpacks initially took ~6,000+ mAh of charge
4 subpacks initially took less than 3,000 mAh of charge
Fast / High Current Cycles
Discharge at 3.0 Amps Charge at 5.0 Amps
Set for NiMH 6 cell pack 6,000 mah expected 7,000 mah limit
Discharge to 0.9 V per cell x 6 cells = 5.4 V per Sub Pack
There is a 15 minute delay between discharge and charge
* = Ian Aborted charge due to temp reading
Slow / low current Cycles
Discharge at 1.0 Amps Charge at 1.0 Amps
Set for NiMH 6 cell pack 6,000 mah expected 7,000 mah limit
Discharge to 0.9 V per cell x 6 cells = 5.4 V per Sub Pack
There is a 15 minute delay between discharge and charge
Slow / low current does not seem to be producing temp variation in cells of sub-pack
Subpack Cycle Date Action Vi mAh Degrees F + Left to - Right
#1 1Fast 8/4 Disch 8.2 959 89
Charge 3278 88 95 92 98 100 102
#2 1 Fast 8/4 Disch 6.7 125 86
Charge 2840 88 91 99 101 93 99
#3 1 Fast 8/4 Disch 7.59 2439 85
Charge 6739* 118 117 114 114 113 115
#4 1 Fast 8/6 Disch 6.68 0000 80
Charge 3977 92 95 100 101 91 93
#5 1 Fast 8/6 Disch 5.89 0000 80
Charge 3111 89 98 100 92 99 90
#6 1 Fast 8/6 Disch 6.93 140 80
Charge 2920 89 90 95 91 99 98
#7 1 Fast 8/6 Disch 6.99 137 79
Charge 3432 91 99 102 100 96 91
#8 1 Fast 8/6 Disch 6.95 173 80
Charge 2794 98 91 94 101 92 102
#9 1 Fast 8/7 Disch 7.58 2360 83
Charge 6009 97 100 100 98 97 97
#10 1 Fast 8/7 Disch 7.57 2228 85
Charge 5954 100 107 109 103 98 103
#11 1 Fast 8/8 Disch 7.2 37 83
Charge 2872 90 95 102 100 95 96
#12 1 Fast 8/8 Disch 6.96 195 85
Charge 3466 97 95 93 97 102 104
#13 1 Fast 8/8 Disch 5.84 0000 85
Charge 3424 106 99 94 92 92 95
2 Slow 8/10 Disch 8.18 2614 73
Charge 7000 80
#14 1 Fast 8/9 Disch 7.27 1300 79
Charge 7000 109 112 119 121 111 114
#15 1 Fast 8/9 Disch 6.4 1358 87
Charge 7000 112 110 114 117 106 118
#16 1 Fast 8/10 Disch 7.3 1775 66
Charge 6493 89 98 96 97 96 98
#17 1 Fast 8/6 Disch 7.63 2658 80
Charge 6139 109 112 113 110 111 103
#18 1 Fast 8/5 Disch 7.04 2309 83
Charge 6159 91 103 103 100 102 98
2 Slow 8/8 Disch 8.03 5163 78
Charge 7000 83
#19 1 Fast 8/5 Disch 5.82 0000 80
Charge 4026 90 91 93 98 101 101
2 Slow 8/9 Disch 7.8 3059 79
Charge 6751 81
#20 1 Fast 8/5 Disch 7.59 2646 76
Charge 6743 106 110 102 111 113 110
2 Slow 8/8 Disch 8.0 5479 80
Charge 6851 82
Obviously the pack was badly unbalanced.
The interesting thing here was that the pack was working relatively normally and had no IMA code in the silver Insight that it came from.I did have problems trying to start the car after it sat for some time.
Ian Cycled each subpack and found that they all seemed to respond with nearly full AH in subsequent cycles.
|
Silver pack reassembled.
|  | | | some interesting observations |
After Ian's thorough cycling experiment, we reassembled the pack.
While the pack was apart, we did a few more interesting test.
1. The positive temp coefficient band that passes through the side of each 6 cell subpack was removed in order to get some data about it's temperature response. Each 6 cell strip measures 1.5 ohm when at room temp. It raises to 2 ohms at about 135F, and is 4 ohms @ 160F.
2. The 180 ohm "resistors" that are in each of the 10 monitor lines feeding to the BCM, are also positive temp coefficient devices. They act like self resettable thermal fuses, as their resistance goes into the K ohm range when they get hot, and returns to 180 ohms when cool.
3. The battery end studs are either a square (+), or a hex (-), and the orange connection plate has mating sockets, so it is virtually impossible to assemble the pack wrong.
When the pack was assembled, we dropped it back into the silver insight. The car had been having trouble cranking just before the pack was removed, but the recharged and cycled pack turned over the car and it started immediately,just as it should, even though the 12V battery had been out of the car for 2 weeks prior, so the computers were all reset, and the SOC showed zero.
This means that the car must do a HV pack voltage check before it decides to use it for cranking,even though it did not know the SOC.
Once we saw the easy start, and no codes, we pulled Ian's pack, and after mounting his BCM and MCM on the silver cars pack, we installed it in his car, so he can watch it on his 500 mile/week commute.
He will also test and cycle his subpacks, by exposing the two ends of the strings,to see how well balanced it is.
We suspect that a pack must sit for a day or so to have the voltage settle to it's no load voltage,and show any imbalance?
I also welded up a radiator mount for the Insight on a stand, and hope to get it running this week.
Another fruitful Sat.
Graphs of the battery pack initial conditions, as well as Ians pack initial conditions:
Ian's Graphs |
|
